Graph Construction¶
In this tutorial you'll learn how LZGraphs transforms raw CDR3 sequences into a probabilistic directed graph — and why that's useful. By the end, you'll have a solid mental model of what the graph represents and how to inspect it.
What does an LZGraph actually represent?¶
Imagine you have thousands of CDR3 sequences from a T-cell repertoire. Each sequence is a string of amino acids like CASSLEPSGGTDTQYF. LZGraphs compresses these sequences using the Lempel-Ziv 76 algorithm — the same family of algorithms behind .zip files — and uses the compression patterns to build a graph.
The key insight is that LZ76 decomposes a string into the shortest novel subpatterns at each position. For example:
Each subpattern becomes a node in the graph, and the transitions between consecutive subpatterns become edges. When you process thousands of sequences, shared subpatterns create shared nodes — and the graph captures the entire repertoire's structure in a compact form.
Here's what a small LZGraph looks like — built from just three CDR3 sequences:
CASS prefix is a single path that branches into different continuations.Why is this useful?
- The graph defines a generative probability model: you can compute the exact probability that the repertoire would produce any given sequence
- You can simulate new sequences that follow the repertoire's statistical patterns
- You can measure diversity, richness, and complexity analytically from the graph structure
- Two repertoires can be compared by comparing their graphs
Building your first graph¶
Let's start with a small example so we can see exactly what's happening.
from LZGraphs import LZGraph
# Six CDR3 amino acid sequences
sequences = [
"CASSLGIRRT",
"CASSLGYEQYF",
"CASSLEPSGGTDTQYF",
"CASSDTSGGTDTQYF",
"CASSFGQGSYEQYF",
"CASSQETQYF",
]
graph = LZGraph(sequences, variant='aap')
print(graph)
Output:
From just 6 sequences, LZGraphs built a graph with 47 nodes and 49 edges. That's because many subpatterns are shared across sequences — C, A, S appear at the start of every sequence, for instance — but at different positions and with different continuations.
The variant parameter¶
The variant controls how subpatterns are labeled in the graph. There are three options:
Each node encodes the subpattern and its position in the sequence. This is the most common choice for CDR3 analysis because position matters biologically — an S at position 3 (the conserved serine after CAS) has different meaning than an S at position 10 (in the junctional region).
graph = LZGraph(sequences, variant='aap')
# Node labels look like: subpattern_position
print(graph.nodes[:6])
# ['C_2', 'A_3', 'S_4', 'SL_6', 'G_7', 'I_8']
The _N suffix is the cumulative position in the original sequence.
Designed for nucleotide sequences. Each node encodes the subpattern, its reading frame (codon position 0/1/2), and its position. Use this when you're working with CDR3 nucleotide sequences and want to preserve codon structure.
No positional encoding — nodes are just the raw subpatterns. An S at position 3 and an S at position 10 are the same node. This creates smaller, more connected graphs, useful for motif discovery or when positional information isn't important.
Which variant should I use?
Use 'aap' for most TCR/BCR analysis. It's the default and the best balance of expressiveness and compactness for amino acid CDR3 sequences. Use 'ndp' only if you're working with nucleotide sequences. Use 'naive' for cross-repertoire feature extraction or when you specifically want position-free analysis.
Smoothing¶
By default, transition probabilities are maximum-likelihood estimates: \(P(v \mid u) = \text{count}(u \to v) \;/\; \text{total outgoing}(u)\). If an edge was never observed, its probability is exactly zero — any sequence using that transition gets probability zero.
Laplace smoothing adds a small pseudocount \(\alpha\) to every possible edge, preventing zero probabilities:
# Without smoothing (default) — MLE estimates, zero for unseen transitions
graph = LZGraph(sequences, variant='aap')
# With smoothing — adds alpha to every edge count before normalizing
graph = LZGraph(sequences, variant='aap', smoothing=1.0)
smoothing value |
Effect |
|---|---|
0.0 (default) |
Pure MLE. Unseen transitions have probability 0. |
0.01 - 0.1 |
Light smoothing. Unseen transitions get small but non-zero probability. |
1.0 |
Standard Laplace smoothing. Good for small repertoires. |
Use smoothing when your repertoire is small and you want to avoid zero-probability dead ends during simulation. For large repertoires (1000+ sequences), smoothing usually isn't necessary.
Exploring the graph structure¶
Now that we've built a graph, let's understand what's inside it.
Size and shape¶
print(f"Nodes: {graph.n_nodes}")
print(f"Edges: {graph.n_edges}")
print(f"Sequences: {graph.n_sequences}")
print(f"Density: {graph.density:.4f}")
print(f"Is DAG: {graph.is_dag}")
Output:
The graph is always a directed acyclic graph (DAG) — edges only go forward (from earlier positions to later positions in the sequence). The density is low because most nodes only connect to a few successors, not to all other nodes.
Nodes: the subpatterns¶
Each node represents a subpattern at a position. Let's look at them:
print(f"Total nodes (excluding sentinels): {len(graph.nodes)}")
print(f"First 8: {graph.nodes[:8]}")
Output:
Total nodes (excluding sentinels): 41
First 8: ['C_2', 'A_3', 'S_4', 'SL_6', 'G_7', 'I_8', 'R_9', 'RT_11']
Sentinel nodes
Internally, the graph has two special sentinel nodes: @ (start) and $ (end). Every walk starts at @ and ends at a $-node. The .nodes property hides these, but you can see them with .all_nodes if you're curious about the internal representation.
Edges: the transitions¶
Each edge represents an observed transition from one subpattern to the next, with a probability (weight) and a raw count:
for src, dst, weight, count in graph.edges[:5]:
print(f" {src:8s} → {dst:8s} P={weight:.3f} count={count}")
Output:
C_2 → A_3 P=1.000 count=6
A_3 → S_4 P=1.000 count=6
S_4 → SL_6 P=0.500 count=3
S_4 → SD_6 P=0.167 count=1
S_4 → SF_6 P=0.167 count=1
Notice that C_2 → A_3 has weight 1.0 — every sequence starts with C then A, so there's no uncertainty there. But from S_4, the graph branches: half the sequences continue with SL (the CASSL... family), while others diverge to SD, SF, or SQ.
This branching structure is exactly what makes the graph a generative model. When you simulate a new sequence, the random walk follows these probabilities at each node.
Following a path through the graph¶
You can trace the possible continuations from any node:
# What can follow after "S_4"?
for label, weight, count in graph.successors("S_4"):
print(f" S_4 → {label:8s} P={weight:.3f} ({count}x)")
Output:
This tells you that after the CAS prefix, 50% of the repertoire continues with SL (making CASSL...), while the other sequences branch into CASSD..., CASSF..., and CASSQ....
Length distribution¶
The graph remembers how many sequences were observed at each length:
for length, count in sorted(graph.length_distribution.items()):
bar = "#" * count
print(f" Length {length:2d}: {count} {bar}")
Output:
Degree statistics¶
The out-degree of a node is how many different continuations it has. High out-degree means high uncertainty at that position — the repertoire is diverse there.
import numpy as np
print(f"Max out-degree: {graph.max_out_degree}")
print(f"Max in-degree: {graph.max_in_degree}")
print(f"Mean out-degree: {graph.out_degrees.mean():.1f}")
print(f"Nodes with out-degree > 2: {np.sum(graph.out_degrees > 2)}")
Adding gene annotation¶
TCR sequences are produced by V(D)J recombination, and the V and J gene segments that were used heavily influence the sequence structure. If you have gene annotations, pass them during construction:
sequences = ["CASSLGIRRT", "CASSLGYEQYF", "CASSLEPSGGTDTQYF"]
v_genes = ["TRBV5-1*01", "TRBV5-1*01", "TRBV12-3*01"]
j_genes = ["TRBJ1-1*01", "TRBJ2-7*01", "TRBJ1-1*01"]
graph = LZGraph(
sequences,
variant='aap',
v_genes=v_genes,
j_genes=j_genes,
)
print(f"Gene data available: {graph.has_gene_data}")
Output:
With gene data, you can inspect the marginal gene usage:
print("V gene usage:")
for gene, freq in sorted(graph.v_marginals.items(), key=lambda x: -x[1]):
print(f" {gene}: {freq:.1%}")
print("\nJ gene usage:")
for gene, freq in sorted(graph.j_marginals.items(), key=lambda x: -x[1]):
print(f" {gene}: {freq:.1%}")
Output:
V gene usage:
TRBV5-1*01: 66.7%
TRBV12-3*01: 33.3%
J gene usage:
TRBJ1-1*01: 66.7%
TRBJ2-7*01: 33.3%
Gene data also enables gene-constrained simulation — generating sequences that use specific V/J combinations. We'll cover this in the Sequence Analysis tutorial.
Abundance weighting¶
By default, each sequence contributes equally to the graph regardless of how many times it was observed. In a real repertoire, some clonotypes are expanded (high count) and others are rare (count of 1). If you have abundance data, pass it to weight the graph:
sequences = ["CASSLEPSGGTDTQYF", "CASSDTSGGTDTQYF", "CASSQETQYF"]
abundances = [500, 12, 3] # clonotype counts
graph = LZGraph(sequences, abundances=abundances, variant='aap')
What changes with abundance weighting:
- Edge weights reflect the abundance-weighted transition frequencies. An edge used by the dominant clone (count=500) will have much higher weight than one used by a rare clone (count=3).
- Simulated sequences will follow the expanded distribution — the dominant clone will appear ~97% of the time, matching the real repertoire.
- Diversity metrics will correctly reflect clonal dominance. Without weighting, all three clones look equally likely; with weighting, the repertoire appears low-diversity (dominated by one clone).
When to use abundance weighting
Use abundances when you want the graph to model the observed repertoire including clonal expansion. Omit them when you want to model the unique sequence diversity — treating each distinct sequence equally regardless of count.
Saving and loading¶
Building a graph from thousands of sequences takes a few seconds. To avoid rebuilding every time, save it to disk in LZGraphs' binary format (.lzg):
# Save
graph.save("my_repertoire.lzg")
# Load
loaded = LZGraph.load("my_repertoire.lzg")
print(loaded)
# LZGraph(variant='aap', nodes=47, edges=49)
The .lzg format preserves everything: graph structure, edge weights, gene data, and all metadata. It's compact and fast to load — typically 10-100x faster than rebuilding from sequences.
File format
.lzg is a custom binary format with CRC-32C checksums for integrity verification. It is not a pickle file — it's safe to load .lzg files from untrusted sources. See Save & Load Graphs for details.
Working with larger datasets¶
Everything we've shown works the same way with real-sized datasets. Here's an example loading 5,000 sequences from a CSV file:
import csv
from LZGraphs import LZGraph
seqs, v_genes, j_genes = [], [], []
with open("repertoire.csv") as f:
for row in csv.DictReader(f):
seqs.append(row['cdr3_amino_acid'])
v_genes.append(row['v_call'])
j_genes.append(row['j_call'])
graph = LZGraph(seqs, variant='aap', v_genes=v_genes, j_genes=j_genes)
print(graph)
# LZGraph(variant='aap', nodes=1721, edges=9644)

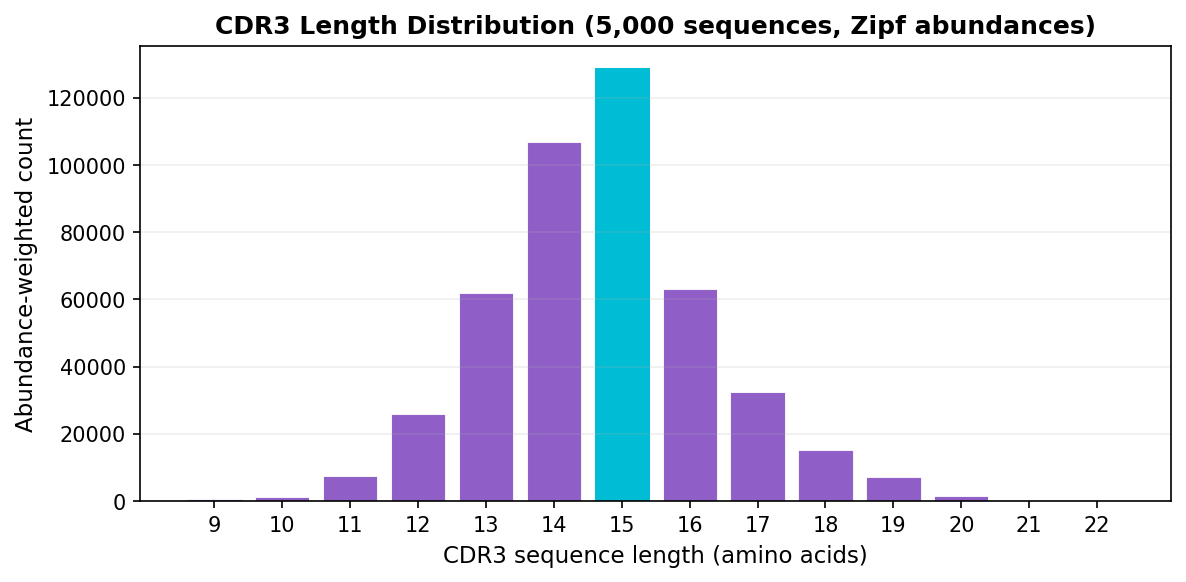

A graph from 5,000 sequences typically has 1,000-2,000 nodes and 5,000-15,000 edges, depending on the diversity of the repertoire. Construction takes under a second on modern hardware.
length_distribution property gives you this data as a dict.What we learned¶
- An LZGraph is a directed acyclic graph where nodes are LZ76 subpatterns and edges are observed transitions
- The
variantparameter controls the encoding:'aap'(amino acid + position),'ndp'(nucleotide + reading frame), or'naive'(no position) - The graph structure — nodes, edges, weights — captures the entire repertoire's statistical patterns
- Gene annotations and abundance weighting add biological context to the model
- Graphs can be saved/loaded in the
.lzgbinary format
Next steps¶
Now that you have a graph, you can:
- Score and simulate sequences — compute generation probabilities and generate novel sequences
- Measure diversity — Hill numbers, richness curves, and occupancy predictions
- Understand the probability model — the mathematics behind LZPGEN
- Explore graph variants in depth — how AAP, NDP, and Naive encodings differ
